Some progress on the conversion.

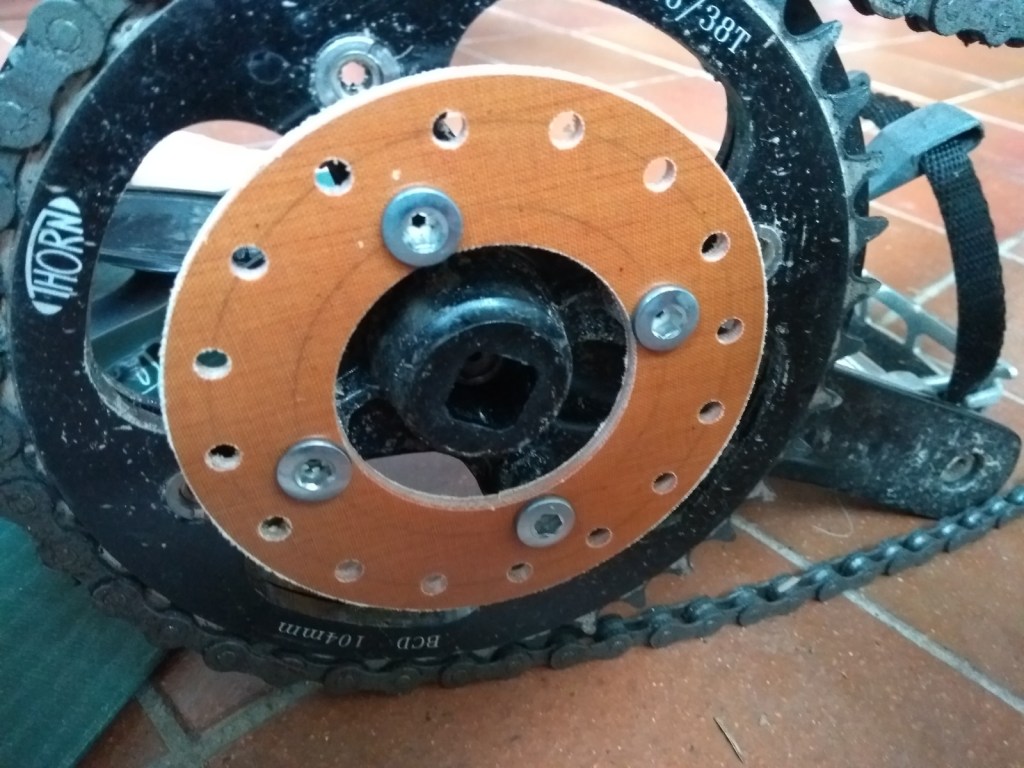

I’ve made a new pedal sensor rotor and sensor mount. I wanted a bigger rotor so that the sensor could be positioned outside of the radius of the tandem eccentric bottom bracket. Not knowing exactly how the sensor worked I kept the same distance between magnets, so the rotor now has 16 magnets instead of 12. The rotor is made from Tufnol as I had some, it is non-magnetic and glues well.
The rotor bolts onto the drillings for the inner chainring. Most bikes will either have an inner chainring fitted or (for a tandem) a simple crank arm. The triplet tandem is probably unique here. I’m not sure if it makes any difference but I did make sure that the magnets are the same way round as the original rotor.Continue reading
